ALUBAT
SEAMLESS


ALUBAT PLAIN | ALUBAT SEAMLESS
Product Code
Single T5 Lamp

3985.1.05: 24W/230V/G5
3985.3.05: 39W/230V/G5
3985.5.05: 54W/230V/G5


Single T5 Lamp DIMMABLE

3985.1.05D: 24W/230V/G5
3985.3.05D: 39W/230V/G5
3985.5.05D: 54W/230V/G5


Double T5 Lamp

3985.2.05: 24W/230V/G5
3985.4.05: 39W/230V/G5
3985.6.05: 54W/230V/G5

Double T5 Lamp DIMMABLE

3985.2.05D: 24W/230V/G5
3985.4.05D: 39W/230V/G5
3985.6.05D: 54W/230V/G5
Technical Description

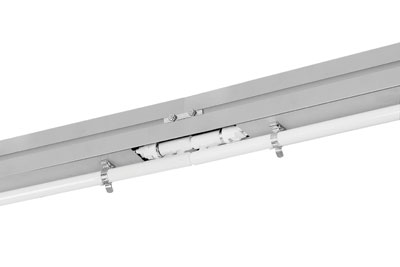

High output indoor fluorescent fitting that utilises both T5 seamless or regular T5 lamps.

The body is made in extruded aluminium. The fitting can be used as a single fitting or used together along the the linear joint accessory.

Ideal for applications requiring hidden ambience.
Colours
05 Nat. Anodized
Light Sources
Linear Seamless Fluor. T5
Max: 54W/230V/G5

Includes integral electronic ballast.

Technical Characteristics
Flammable
IP 20
Class I


ACCESSORY

CI/UNI.CD: Linear Joint


SINGLE FLUORESCENT



DOUBLE FLUORESCENT
