Reflector Code
BG/14803 - 2 x 36W
BG/14805 - 2 x 58W |

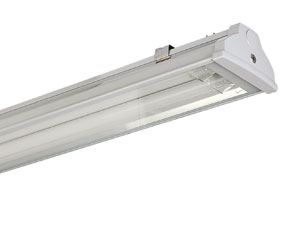

Technical Description
• Heavy duty industrial vapourproof
• High resistance to aggressive chemical agents
• The body of the Acciaio is made in zincalume with die-cast aluminium end caps
• Clear tempered glass diffuser
• The optical reflector of the Acciaio allows for 20% higher light output with energy of up to 30% (depending on application and compared to traditional luminaires)
• The fitting includes electronic ballast:
- Complies with: EN 60929
- Operating temp. -25º ÷ 70º
- Max. Temp.: 80º
- Correct positioning of tubes is controlled by a guide rail
• Snap on ceiling brackets allow for easy track and ceiling installation
• An Emergency LED unit (fig. 1a-d) is available on request
• The fitting is sealed using silicone gaskets |
Light Sources
BG/14803 Linear Fluorescent
Max: 36W/230V/G13 (T8)
BG/14803Linear Fluorescent
Max: 58W/230V/G13 (T8) |
Technical Characteristics
Flammable
IP 66
Class 2 |
